Product Information

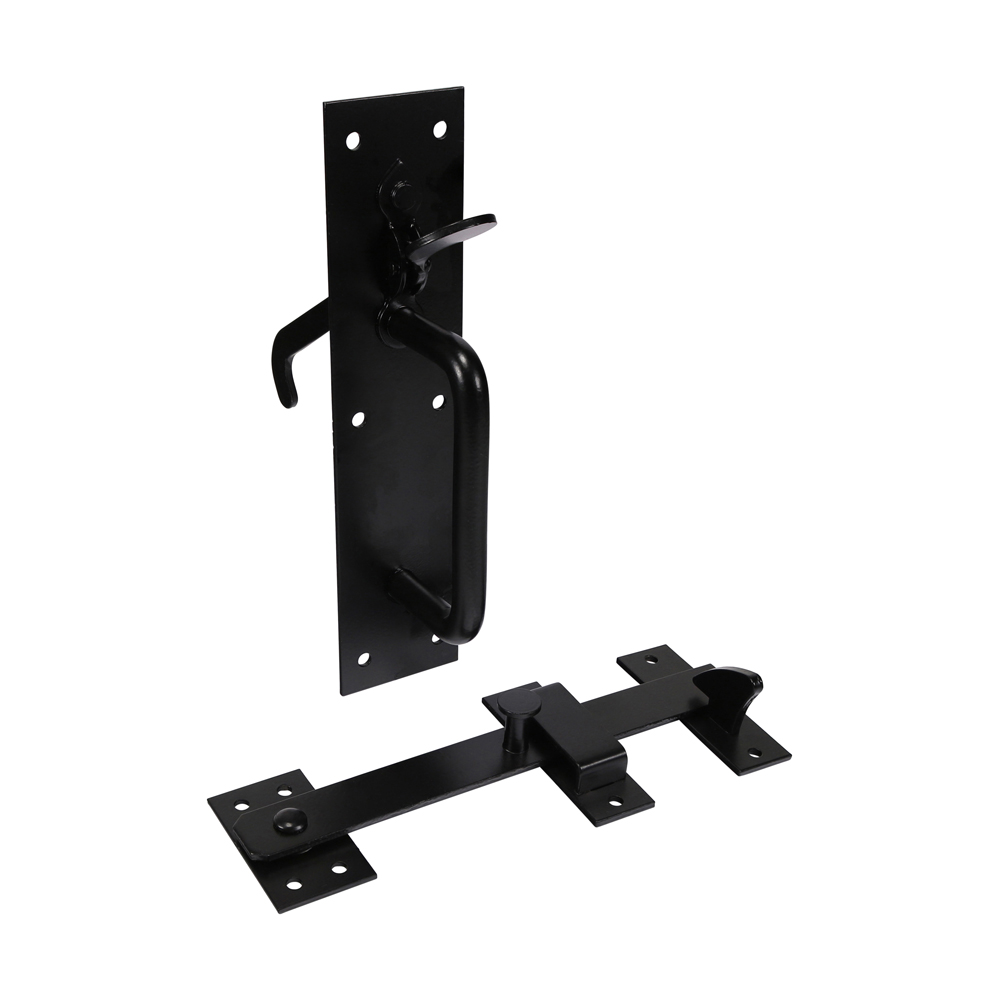

Heavy Suffolk Latch Black
  • Multi Purpose Door, Gate Latch
  • Extended Thumb Latch Projection
Documents
Technical Specifications
Product Specification
Backplate Size L x W mm 219 x 50
Bar Length mm 203
Catch Projection mm 110
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
CSK Screw Size mm 4.0 x 30
Finish Epoxy Black
Included Items 4.0 x 30mm Pan Screws (Qty 14), 4.0 x 30mm Countersunk Screws (Qty 6)
Material Carbon Steel
Max Gate Thickness mm 75
No of CSK Screws 6
No of Pan Screws 14
Carton Qty Packs 5
Pack Dimensions L x W x H mm 530 x 174 x 57
Pack Quantity Unit Each
Pack Weight kg 0.75
Pallet Qty Packs N/A
Pan Screw Size mm 4.0 x 30
Product Code 523369P
Rec Screw Dia mm 4.0
Screw Holes 6.0mm WebAttribute
Size 219 x 50mm
SKU Barcode 5056602034962
Type Heavy
Attribute Group 1
Brand TIMCO
Description
Benefit 2
Benefit 2 Gates upto 75mm Thick
Benefit 1
Benefit 1 Easy to Fit
Pack Quantity

Suffolk Latch - Heavy Duty - Black

219 x 50mm

  • Product Code: 523369P
  • Pack Type: TIMbag
  • Pack Quantity: 1
  • Barcode: 5056602034962
